ALBAMAT Z1 Serie

ALBAMAT Z1 Serie

For compacting various waste materials
5-fold fully automatic vertical binding

  • ALBAMAT 800 V5-Z1

    • 80 t Pressing force
    • 45 or 60 KW Motor available
    • Bale weights up to 650 kg - cardboard 35 kg/m³
    • 1 main press cylinder for large feed opening

    more ...

  • ALBAMAT 900 V5-Z1

    • 90 t Pressing force
    • 75 or 110 KW Motor available
    • Bale weights up to 800 kg - cardboard 35 kg/m³
    • 1 main press cylinder for large feed opening

    more ...

Features ALBAMAT Z1 Series

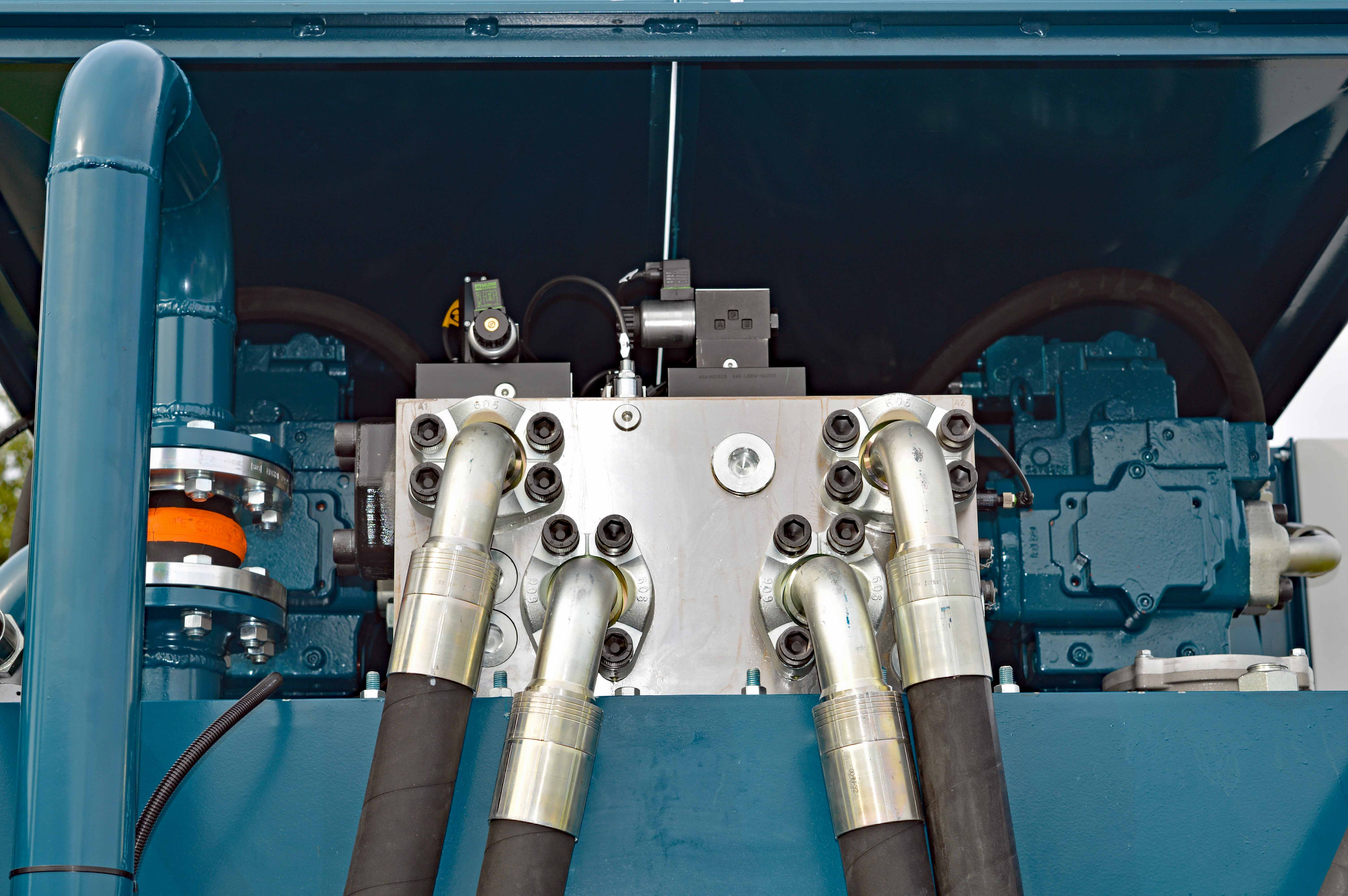

  • Hydraulic

    • All components from renowned manufacturers
    • Motor pump unit from 60-110 KW
    • High performance oil-cooler

    • Easy access to pumps and valves

    • Valves according to Cetop standard

  • Control cabinet

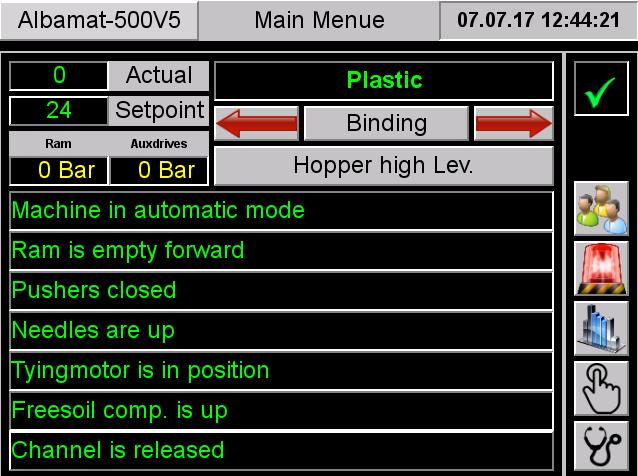

    • Simple and safe operation via 5.7" touch panel and push button function

    • Selection of all press parameters by recipe management

    • Display of all information on the current operating status

    • Display of maintenance status and all error messages

    • Memory for material-dependent setups (user recipes)
    • Automatic and manual operation
    • Event monitor
    • Remote diagnosis

    • Standard system language German and English, other languages available on request

    • Control cabinet heating as standard equipment

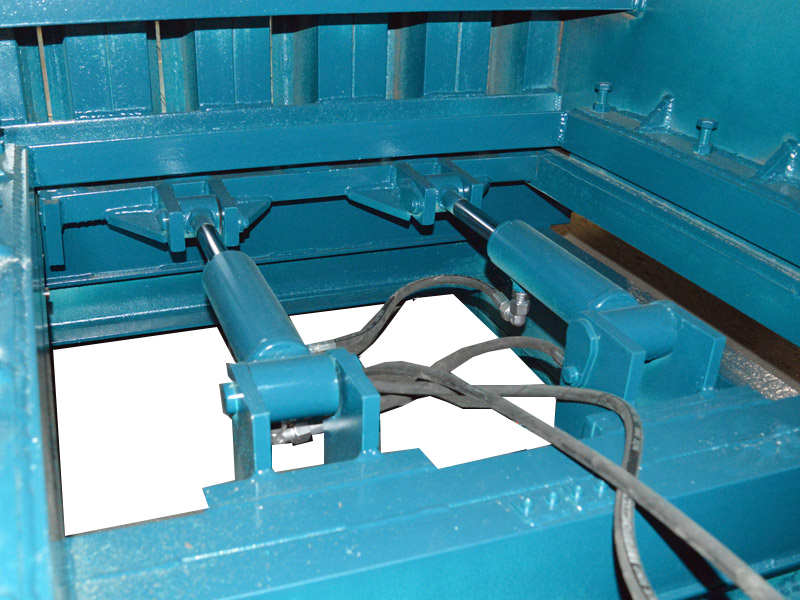

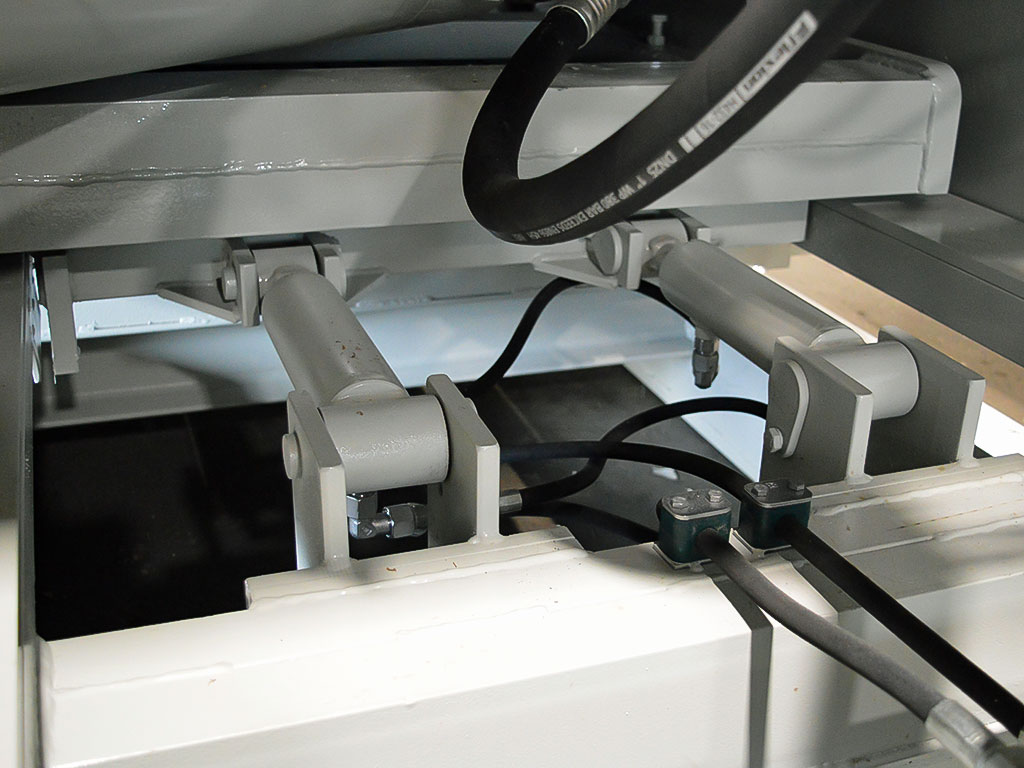

  • Ground slide and piston valve

    • Ground slide and piston valve for covering the needle opening prevents contamination of the binding unit with plastic particles, etc.
    • Hydraulic with 2 working cylinders

  • Tying

    • 5-fold fully automatic, vertical wire tying
    • Suitable for wire thicknesses from 3.1 to 3.8 mm

    • Service-friendly and reliable twist unit with powerful drill motor

    • Easy access via safety doors for maintenance and service
    • Needle opening closure (Optional): prevents that small particles contaminate the tying system . Excellent for materials such as PET, plastics, film, mineral wool and shredded materials (document shredding).
    • Pivoting tying unit for transport and service (optional hydraulic)
    • Big Coil Storagesystem for 10 Wirecoils of each 500kg (optional)
    • 5-fold vertical, 3-fold horizontal cross tie (optional)

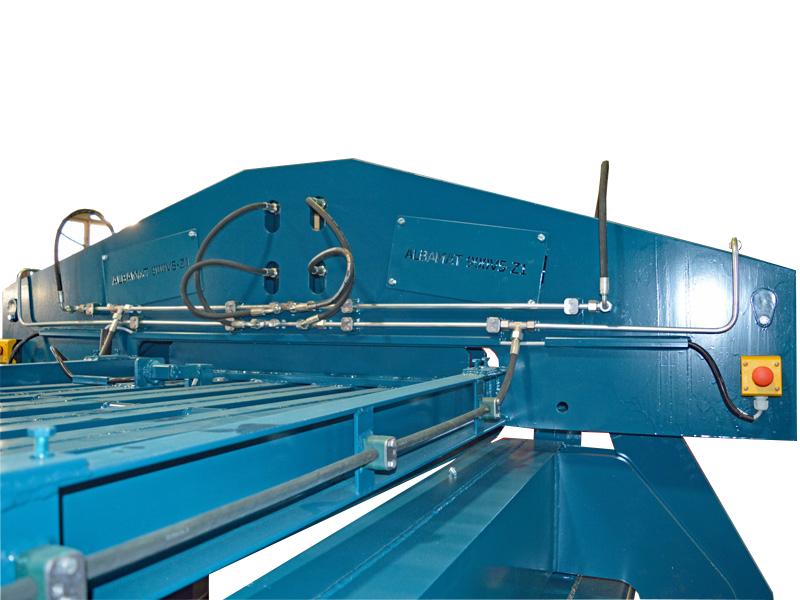

  • Channel adjustment

    • Channel adjustment - 3 sides, hydraulic-automatic, 4 working cylinder
    • Long operating times due to robust design

    • Fine control through parameter sets in the channel menu

  • Feeding opening

    Large feeding opening (W 1140 x L 1700 mm) suitable for bulky material. Additional hopper on request.

Technical data ALBAMAT Z1 Series

TYP 800 V5 Z1
 900 V5 Z1
Pressing force: [kN/t] 800/80 900/90
Specific pressing force: [N/cm²] 98 76
Motor: [kW] 45 60 75 * 110 *
Throughput weight cardboard 35 kg/m³ (B19): approx. [t/h] 5,0 7,0 9,0 13,0
Volume-idle running: approx. [m³/h] 261 405 679 825
Volume-under working conditions B19: approx.[m³/h] 219 282 489 674
Cycle time: [sec] 20 13 16 13
Feed opening: WxL: [mm] 1.140 x 1.700 1.140 x 1.700
Weight: approx. [kg] 13.000 18.000
Tying system: Vertical, 5-fold, automatic Vertical, 5-fold, automatic
Bale size W x H x L: [mm] 1.080 x 730 x 1.200 1.080 x 1.110 x 1200
Bale weight– cardboard B19
(depending on type of material): [kg]		 approx. 450-650 approx. 500-800

Overview of the technical data of all series

We are happy to advise you

We would be delighted to advise you on a press which you may be considering. On request, you will receive additional product information with all the technical data and a non-binding offer.

Mr. Uwe Albers will be happy to answer any questions you may have.



abba PRESSENTECHNIK

Luddenfehn 15
D-49779 Niederlangen

Phone (+49) 0 59 33 / 92 53 5
Fax (+49) 0 59 33 / 92 53 6
E-Mail: This email address is being protected from spambots. You need JavaScript enabled to view it.

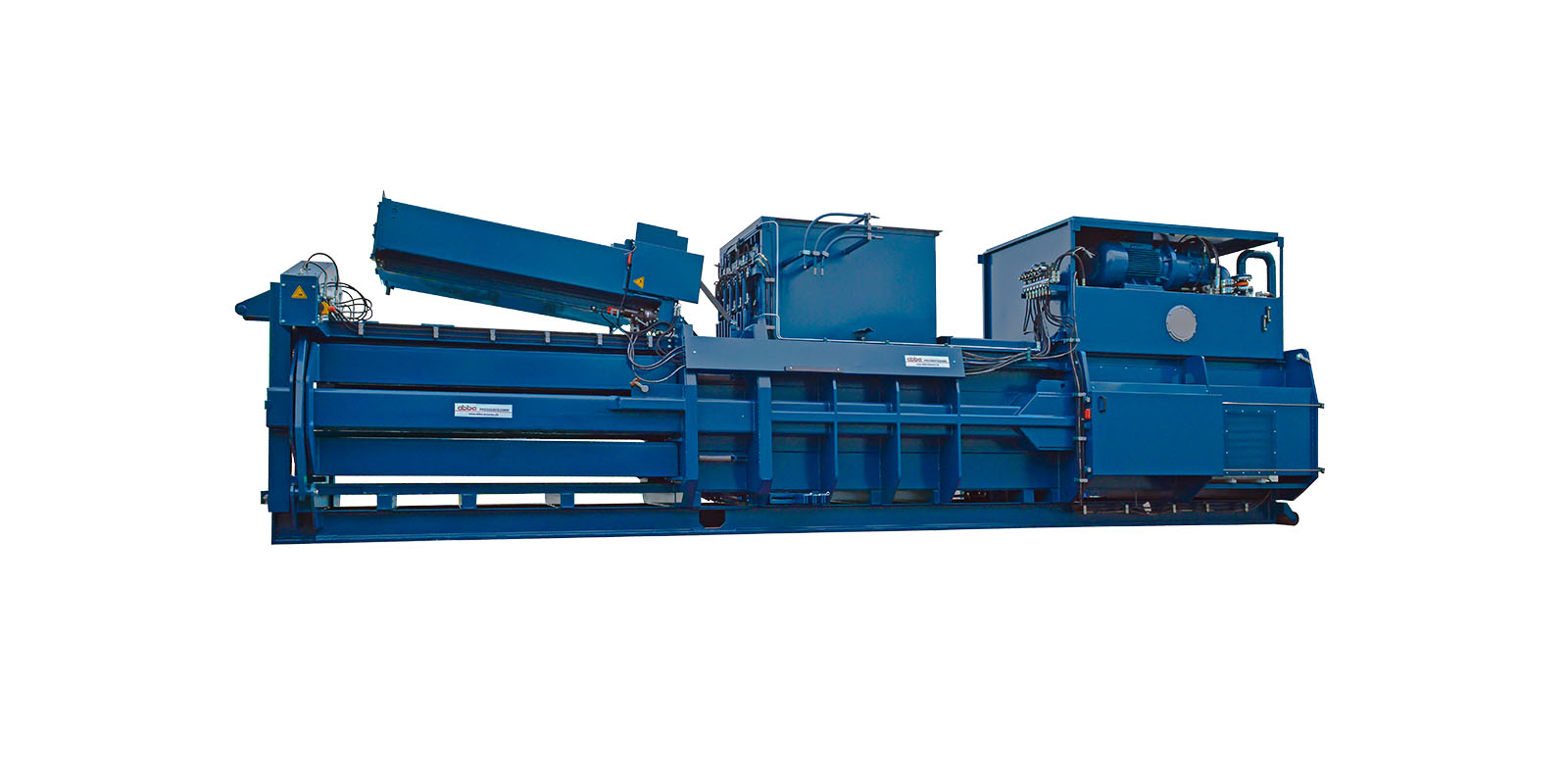

Albamat 900 V5-Z1

ALBAMAT 900 V5 Z1

  • Albamat 900 V 5 Z 1 01

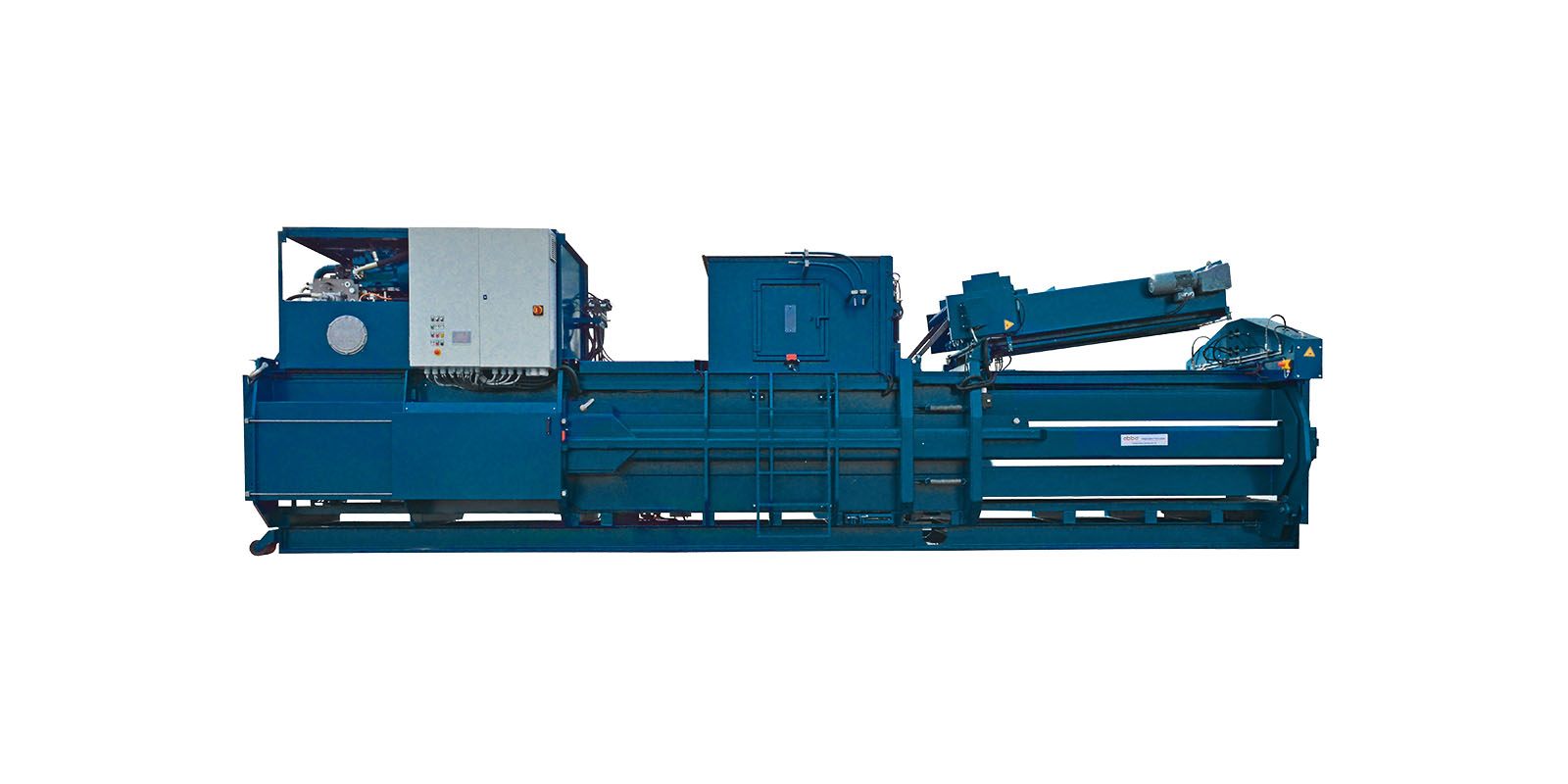

  • Albamat 900 V 5 Z 1 02

Features ALBAMAT 900 V5 Z1

  • 90 t pressing force
  • Suitable for pressing cardboard, waste paper, printing waste, hard and soft plastics (PET, HDPE etc.), foil, cans (aluminium, tinplate) Shrub cut, glass wool, wood shavings
  • 1 main press cylinder for large feed opening
  • 5-fold automatic vertical tying
  • Machine equipped with Hardox guide (Press piston) incl. wear- and heat-resistant piston guide strips
  • Hardox-Floor as standard equipment
  • Vertical stamp, Tank and control cabinet heating and oil-cooler as standard equipment
  • Ground slide and piston valve for covering the needle opening (prevents contamination of the binding unit with plastic or other small particles, etc.)
  • Channel adjustment - 3 sides, hydraulic-automatic, 4 working cylinder
  • 4 retaining clamps to retain expanding material in the press channel
  • Photocell control in the filling chute
  • Continuous feeding by conveyor belt etc.
  • Fast cycle times
  • Additional photocell for overfilling
  • Pivoting tying unit for transport and service
  • Simple and safe operation via 5.7" touch panel and push button function
  • 10 programs for different materials (paper, foil, plastic, user recipes etc.)
  • Operator side freely selectable
  • Hopper as required

  • Albamat9005Z1_at Site 01

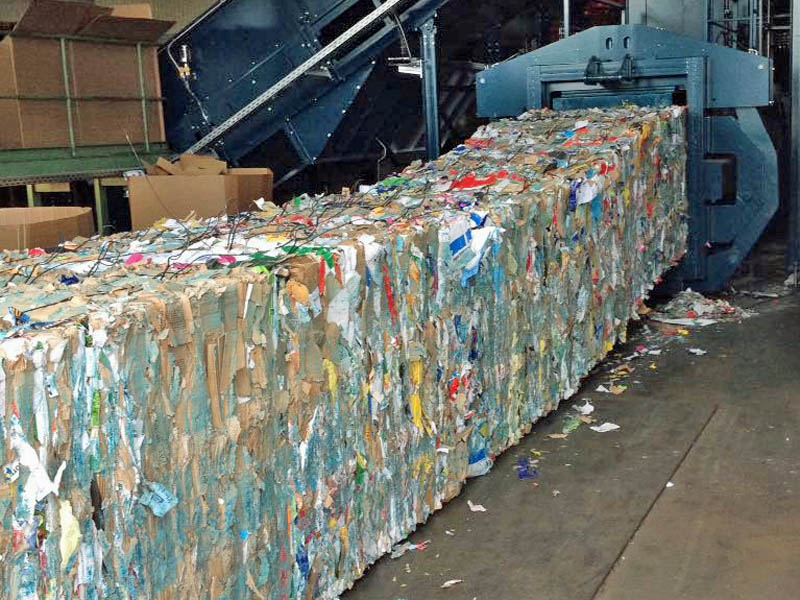

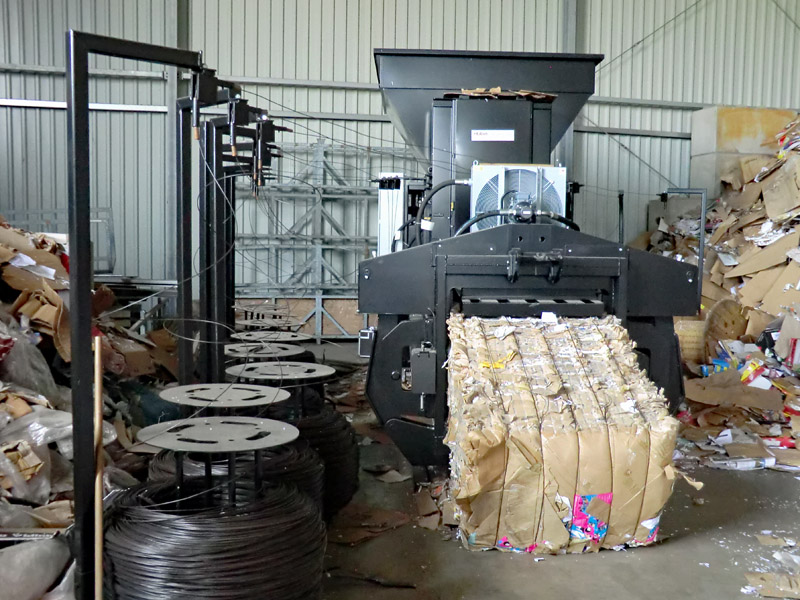

  • 900V5Z1_Kartonage

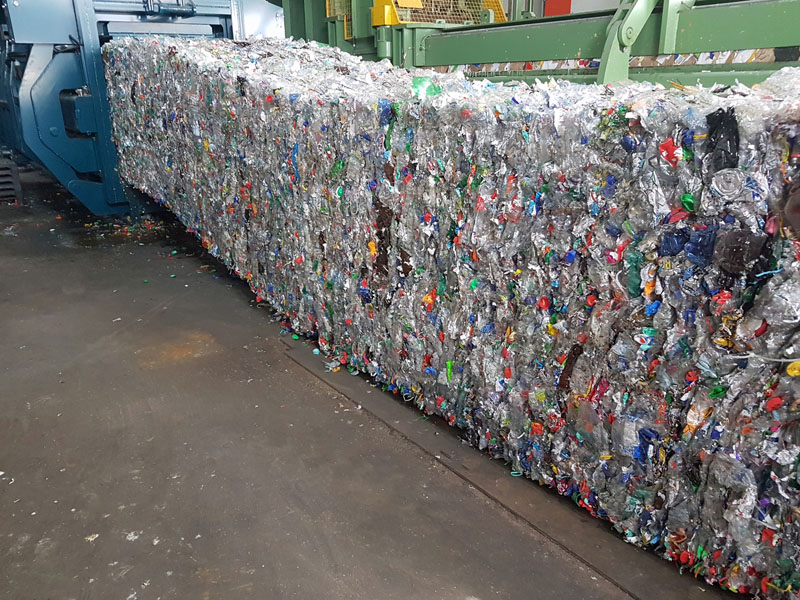

  • Albamat 900V5Z1_PET

  • Albamat900V5Z1_Ballen

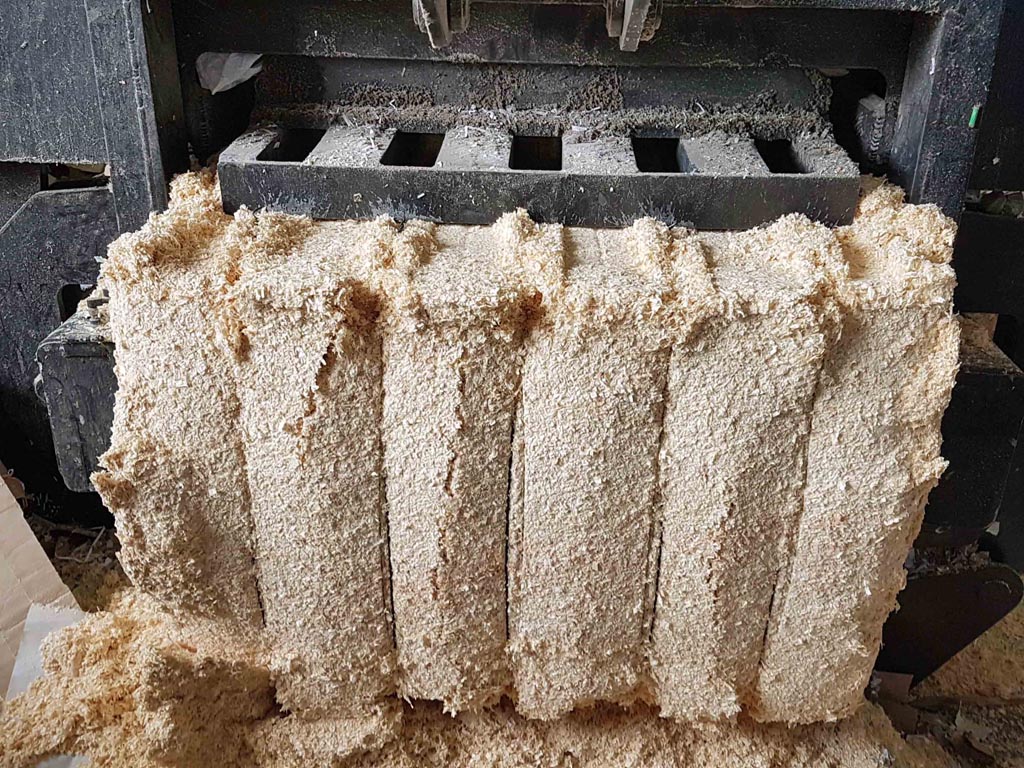

  • 900V5Z1_Holz

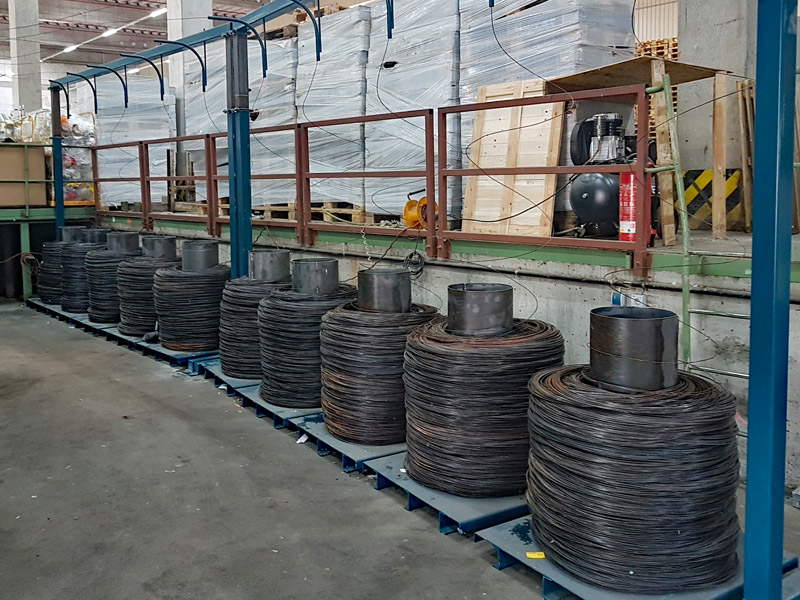

  • 900V5Z1_Drahtrollen

  • Albamat 800 V 5 Z 1 04

Technical data ALBAMAT 900 V5 Z1

TYP 900 V5 Z1
Pressing force: [kN/t] 900/90
Specific pressing force: [N/cm²] 76
Motor: [kW] 75 110
Throughput weight cardboard 35 kg/m³ (B19): ca. [t/h] 9,0 15,0
Volume-idle running: [m³/h] 679 825
Volume-under working conditions B19: [m³/h] 489 674
Cycle time: [sec] 16 13
Feed opening: BxL: [mm] 1.140 x 1.700
Weight: approx. [kg] 18.000
Tying system: Vertical, 5-fold, automatic
Bale size W x H x L: [mm] 1.080 x 1.110 x 1200
Bale weight– cardboard B19
(depending on type of material): [kg]		 up to 800 kg

Overview of the technical data of all series

Accessories and Extras

We are happy to advise you

We would be delighted to advise you on a press which you may be considering. On request, you will receive additional product information with all the technical data and a non-binding offer.

Mr. Uwe Albers will be happy to answer any questions you may have.



abba PRESSENTECHNIK

Luddenfehn 15
D-49779 Niederlangen

Phone (+49) 0 59 33 / 92 53 5
Fax (+49) 0 59 33 / 92 53 6
E-Mail: This email address is being protected from spambots. You need JavaScript enabled to view it.

ALBAMAT Serie

ALBAMAT Serie

For compacting cardboard, waste paper, plastics, etc.
5-fold fully automatic vertical tying

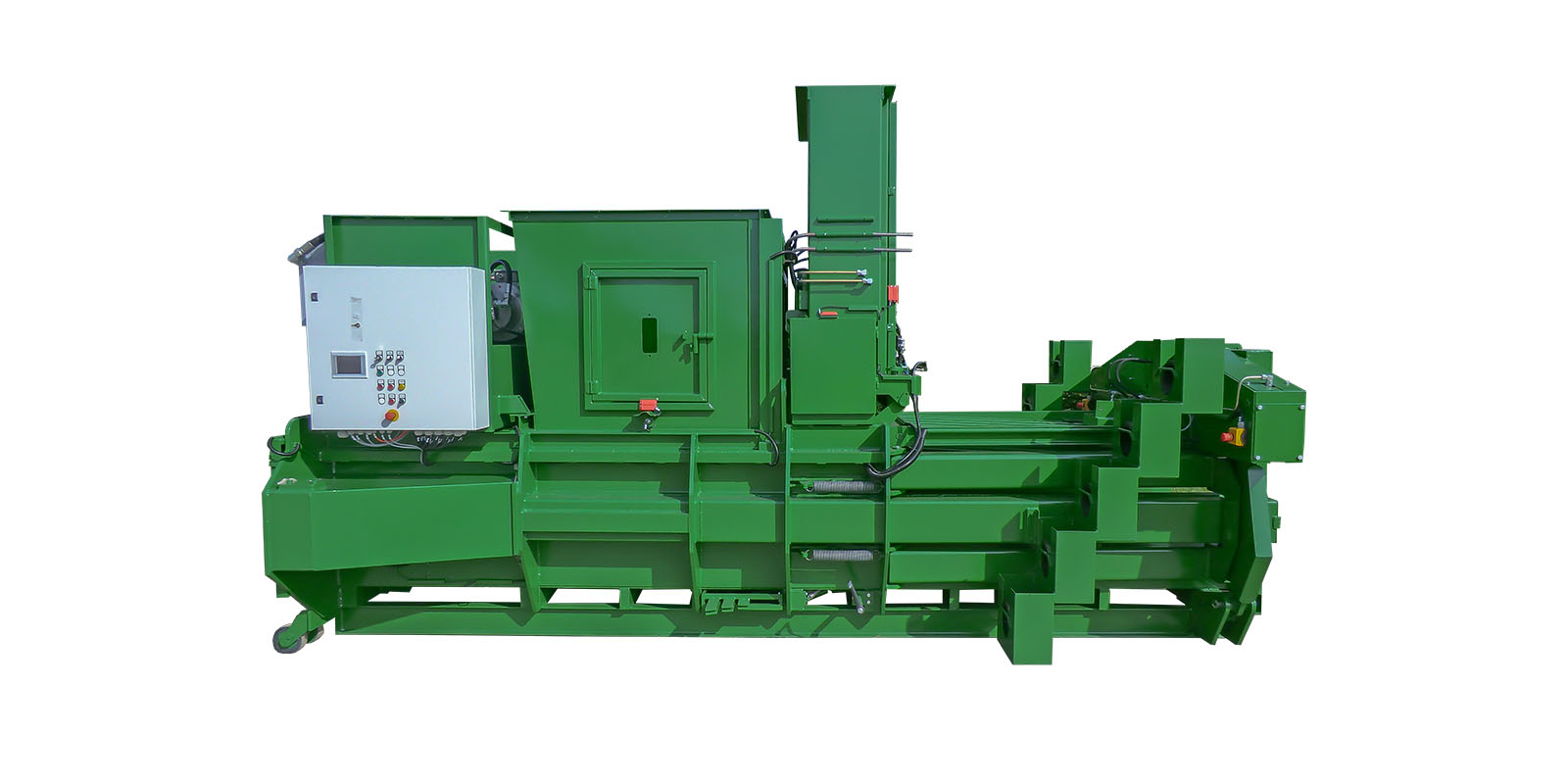

  • ALBAMAT 500 V5

    • 60 t pressing force
    • 15, 22 or 30 KW Motor
    • Bale weights up to 500 kg - cardboard 35 kg/m³
    • Mobile

    more ...

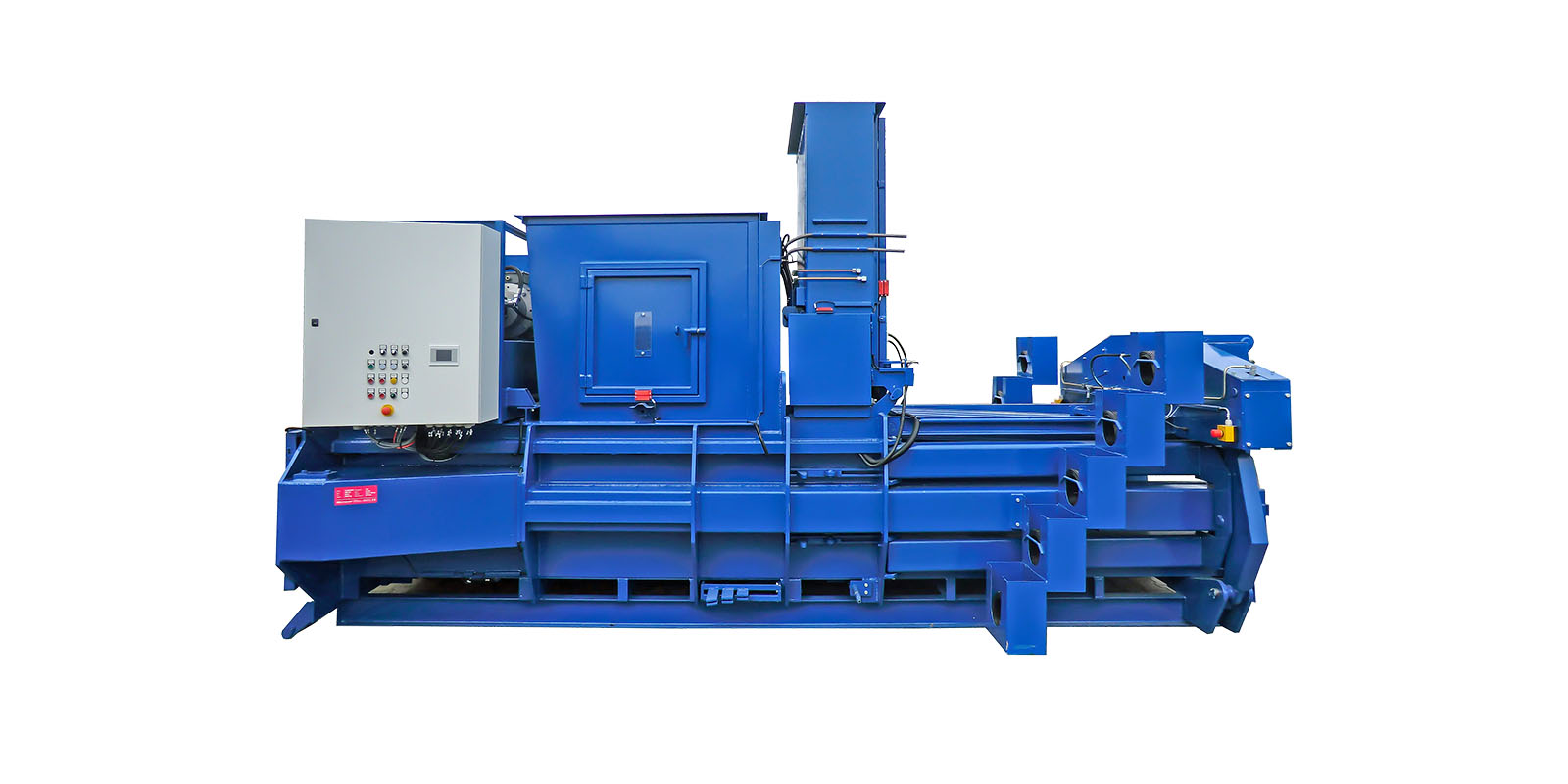

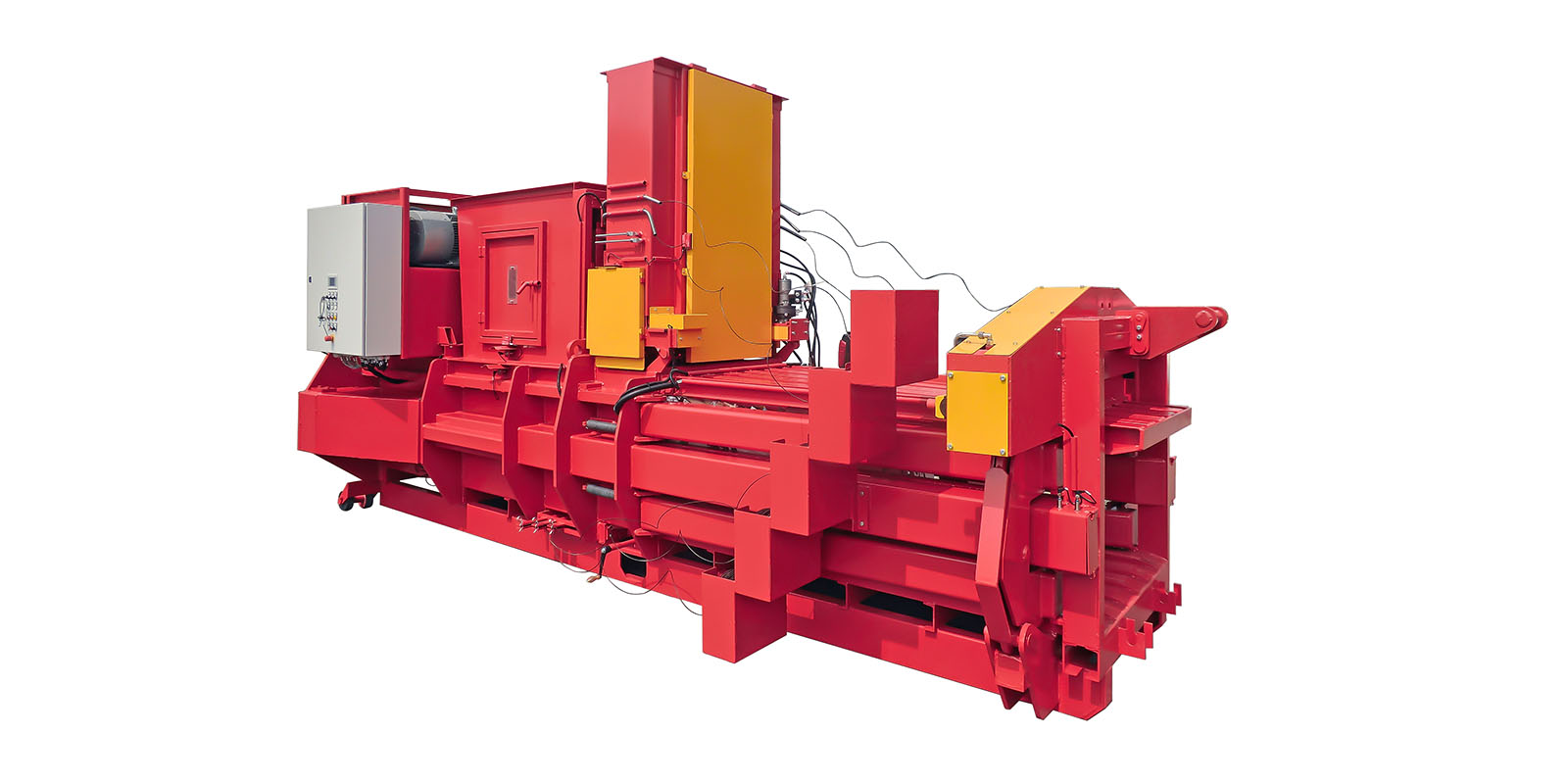

  • ALBAMAT 600 V5

    • 60 t pressing force
    • 22, 30 or 45 KW Motor
    • Bale weights up to 550 kg - cardboard 35 kg/m³
    • Mobile

    more ...

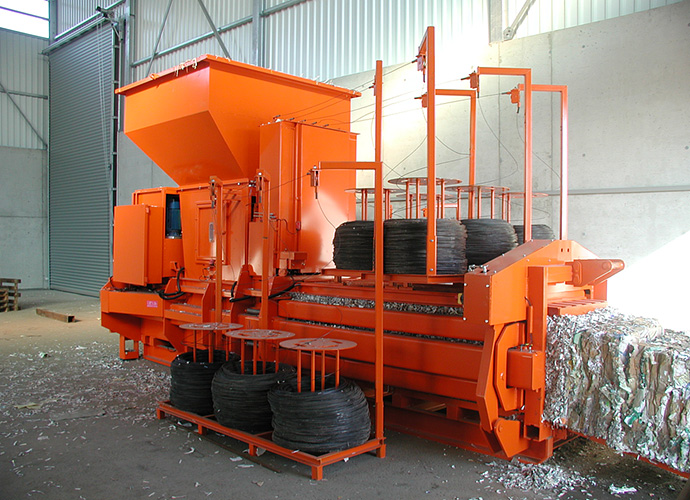

  • ALBAMAT 800 V5

    • 80 t pressing force
    • 30, 45 or 60 KW Motor
    • Bale weights up to 650 kg - cardboard 35 kg/m³
    • Mobile

    more ...

Features Albamat Series

  • Control cabinet

    • Simple and safe operation via 5.7" touch panel and push button function

    • Selection of all press parameters by recipe management

    • Display of all information on the current operating status

    • Display of maintenance status and all error messages

    • Memory for material-dependent setups (user recipes)

    • Automatic and manual operation
    • Event monitor
    • Remote diagnosis
    • Standard system language German and English, other languages available on request
    • Control cabinet heating as standard equipment for Albamat 600V5 and 800V5 (Albamat 500V5 optional)

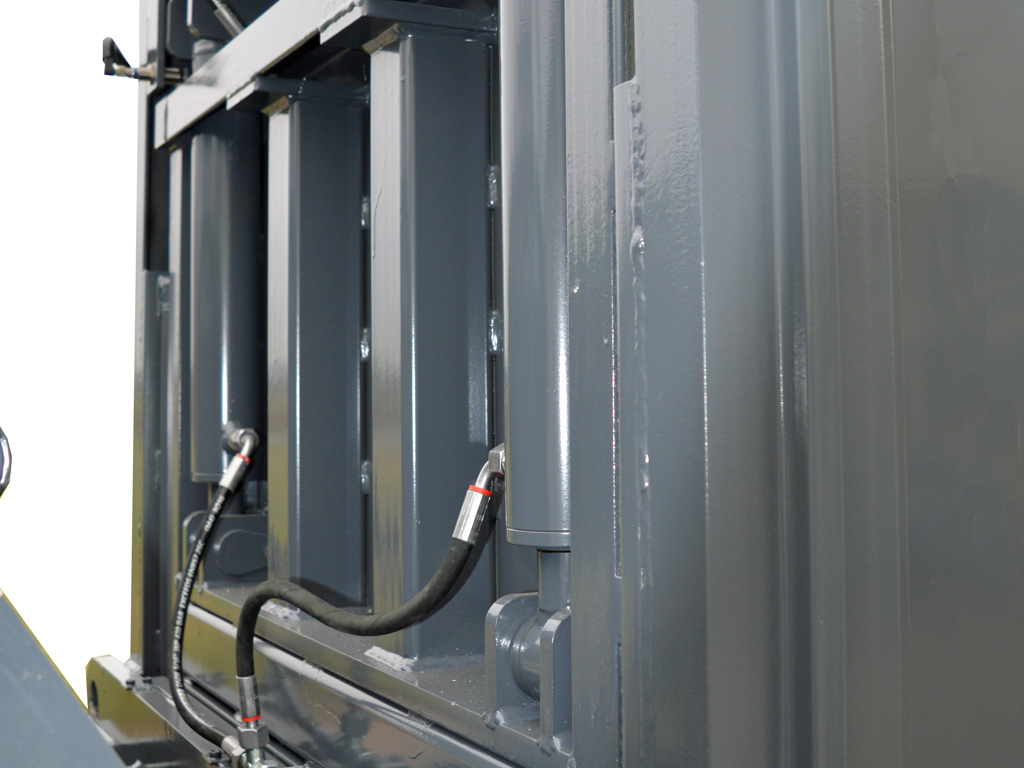

  • Vertival stamp

    • Removes jammed material (especially bulky and pre-compressed material) from the cutting area between the knife bar and the press plunger
    • Pressing force: 14 t (140 kN)
    • Easy to service and maintain
    • Vertical stamp standard on all Albamat presses

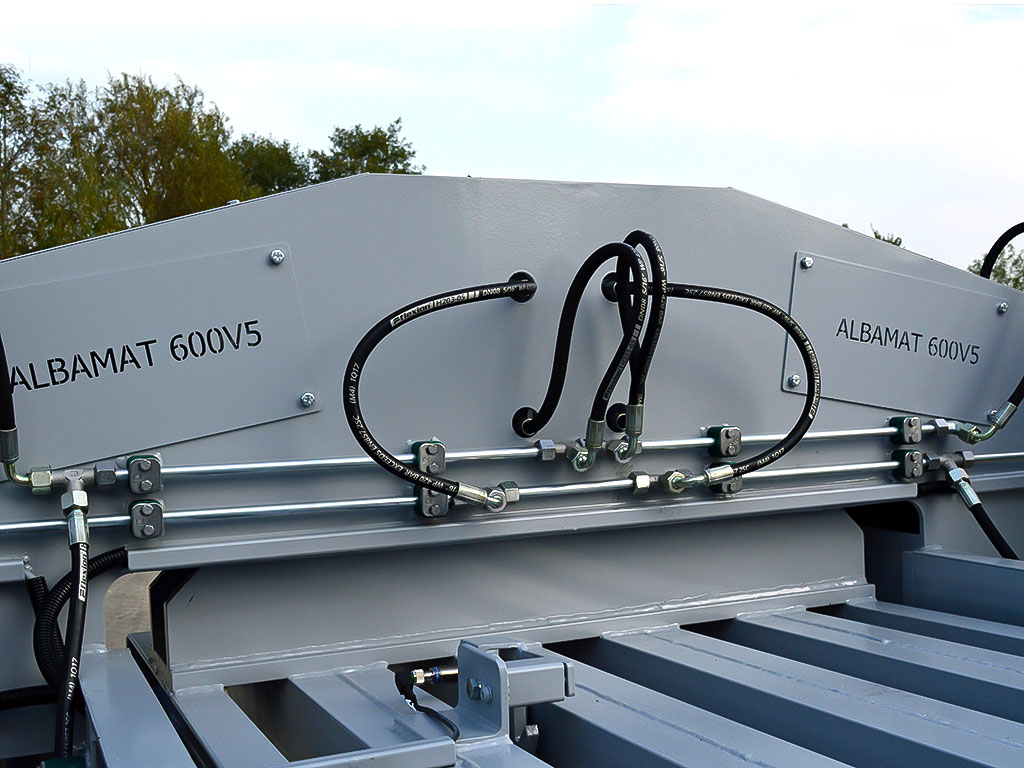

  • Channel adjustment

    • Channel adjustment - 3 sides, hydraulic-automatic, 4 working cylinder
    • Long operating times due to robust design
    • Fine control through parameter sets in the channel menu

  • Ground slide and piston valve

    • Ground slide and piston valve for covering the needle opening prevents contamination of the binding unit with plastic particles, etc.
    • Hydraulic with 2 working cylinders

  • Tying system

    • 5-fold fully automatic, vertical wire tying
    • Suitable for wire thicknesses from 3.1 to 3.8 mm
    • Service-friendly and reliable twist unit with powerful drill motor
    • Easy access via safety doors for maintenance and service
    • Optional: Needle opening closure: prevents that small particles contaminate the tying system . Excellent for materials such as PET, plastics, film, mineral wool and shredded materials (document shredding).
    • Pivoting tying unit for transport and service (optional hydraulic)
    • Big Coil Storagesystem for 10 Wirecoils of each 500kg (optional)
    • 5-fold vertical, 3-fold horizontal cross tie (optional)

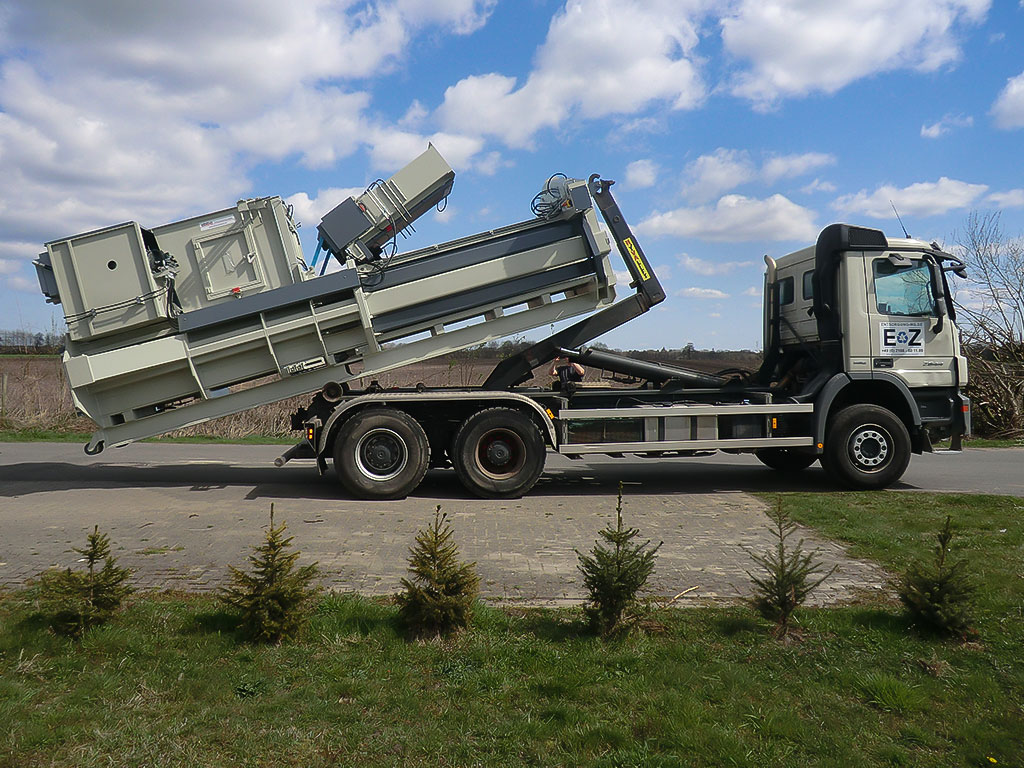

  • Mobile

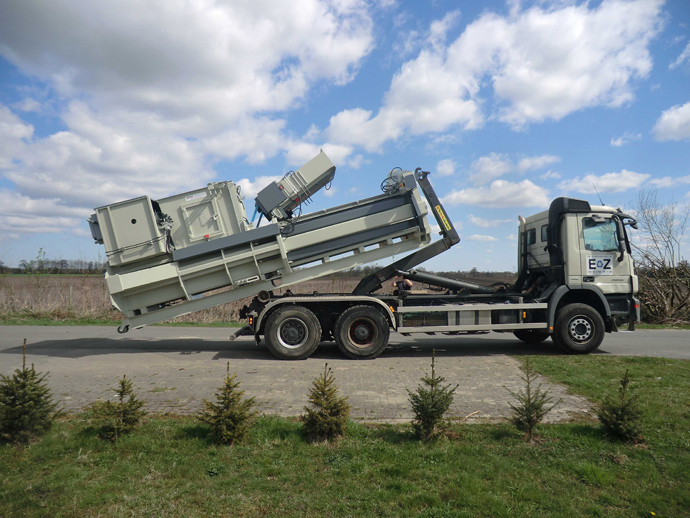

    • Mobile hook lift holder for standard hook lift vehicles (height of the hook lift holder can be adjusted to Scandinavian hook lift vehicles by simply turning the hook)
    • Transport rollers allow the baler to be easily moved by e.g. forklift

    • Lower frame with carrier for hook lift transport

    • Pivoting tying unit for transport and service
    • No special soil conditions required (e.g. concrete foundations)

  • Hydraulic

    • All components from renowned manufacturers
    • Easy access to pumps and valves
    • Motor pump unit from 15-60 KW
    • Valves according to Cetop standard

Technical data of Albamat series

TYP 500 V5 600 V5 800 V5
Pressing force: [kN/t] 600/60 600/60 800/80
Specific pressing force: [N/cm²] 78 78 98
Motor: [kW] 15 22 30 22 30 45 30 45 60
Throughput weight cardboard 35 kg/m³ (B19): ca. [t/h] 2,6 3,3 4,0 3,3 4,2 5,4 4,0 5,0 7,0
Volume-idle running: [m³/h] 124 158 198 158 198 260 170 225 314
Volume-under working conditions B19: [m³/h] 75 95 120 95 120 156 102 146 188
Cycle time: [sec] 32 25 20 25 20 15 23 18 13
Feed opening: WxL: [mm] 1.114 x 1.350 1.140 x 1.370 1.140 x 1.470
Weight approx.. [kg] 8.500 9.000 12.000
Tying system: Vertical, 5-fold, automatic Vertical, 5-fold, automatic Vertical, 5-fold, automatic
Bale size W x H x L: [mm] 1.050 x 720 x 1.200 1.050 x 720 x 1.200 1.080 x 750 x 1.200
Bale weight– cardboardB19
(depend on type of material): [kg]		 approx. 450-550 approx. 450-500 approx. 450-650

Overview of the technical data of all series

We are happy to advise you

We would be delighted to advise you on a press which you may be considering. On request, you will receive additional product information with all the technical data and a non-binding offer.

Mr. Uwe Albers will be happy to answer any questions you may have.



abba PRESSENTECHNIK

Luddenfehn 15
D-49779 Niederlangen

Phone (+49) 0 59 33 / 92 53 5
Fax (+49) 0 59 33 / 92 53 6
E-Mail: This email address is being protected from spambots. You need JavaScript enabled to view it.

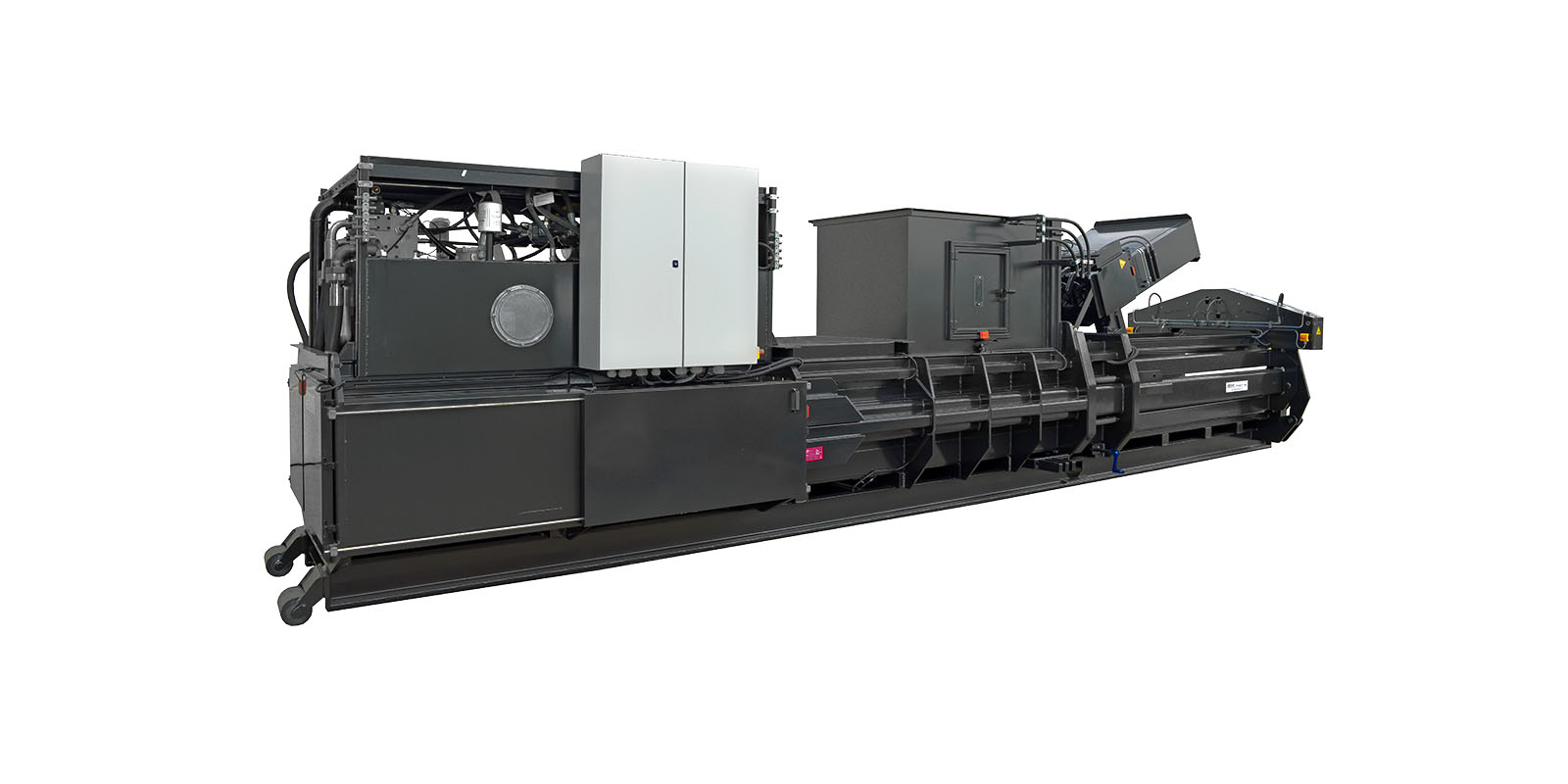

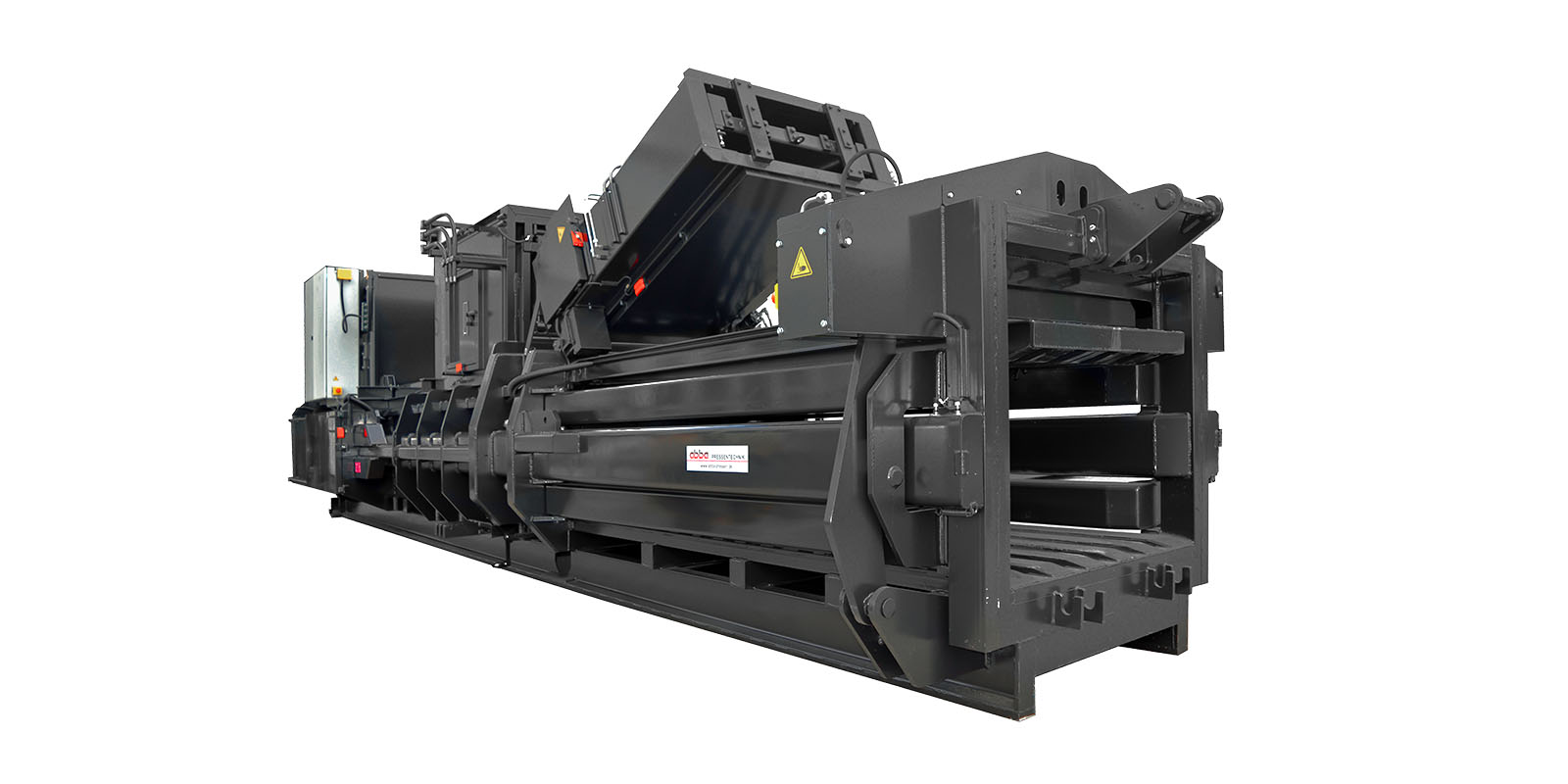

Albamat 800 V5-Z1

ALBAMAT 800 V5 Z1

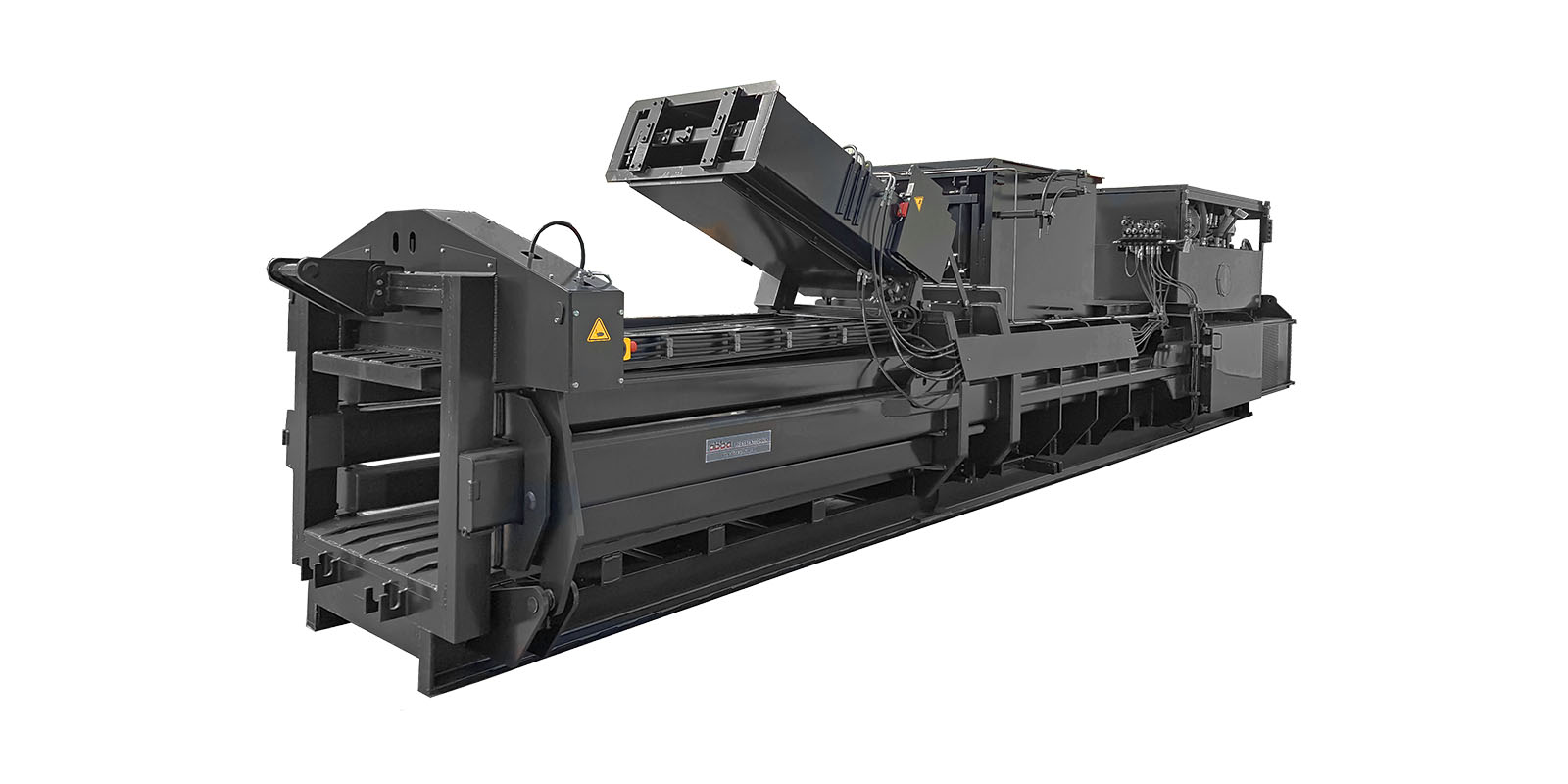

  • Albamat 800 V 5 Z 1 01

  • Albamat 800 V 5 Z 1 02

  • Albamat 800 V 5 Z 1 03

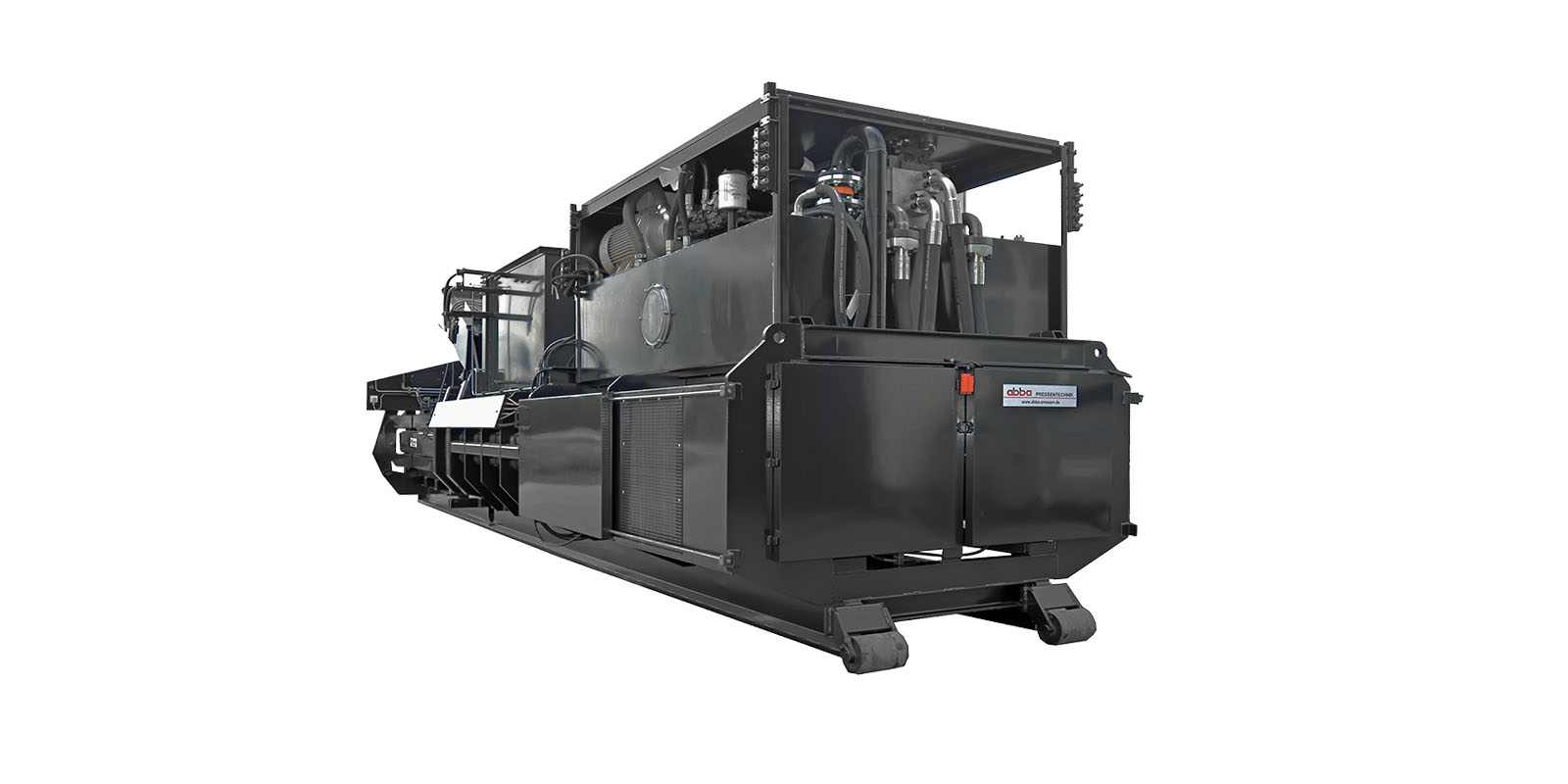

  • Albamat 800 V 5 Z 1 04

Features ALBAMAT 800 V5 Z1

  • 80 t pressing force
  • Suitable for pressing cardboard, waste paper, printing waste, hard and soft plastics (PET, HDPE etc.), foil, cans (aluminium, tinplate) Shrub cut, glass wool, wood shavings
  • 1 main press cylinder for large feed opening
  • 5-fold automatic vertical tying
  • Hardox guide (Press piston) incl. wear- and heat-resistant piston guide strips
  • Hardox-Floor as standard equipment (Optional Hardox-Channel)
  • Vertical stamp, Tank and control cabinet heating and oil-cooler as standard equipment
  • Ground slide and piston valve for covering the needle opening (prevents contamination of the binding unit with plastic or other small particles, etc.)
  • Channel adjustment - 3 sides, hydraulic-automatic, 4 working cylinder
  • 4 retaining clamps to retain expanding material in the press channel
  • Photocell control in the filling chute

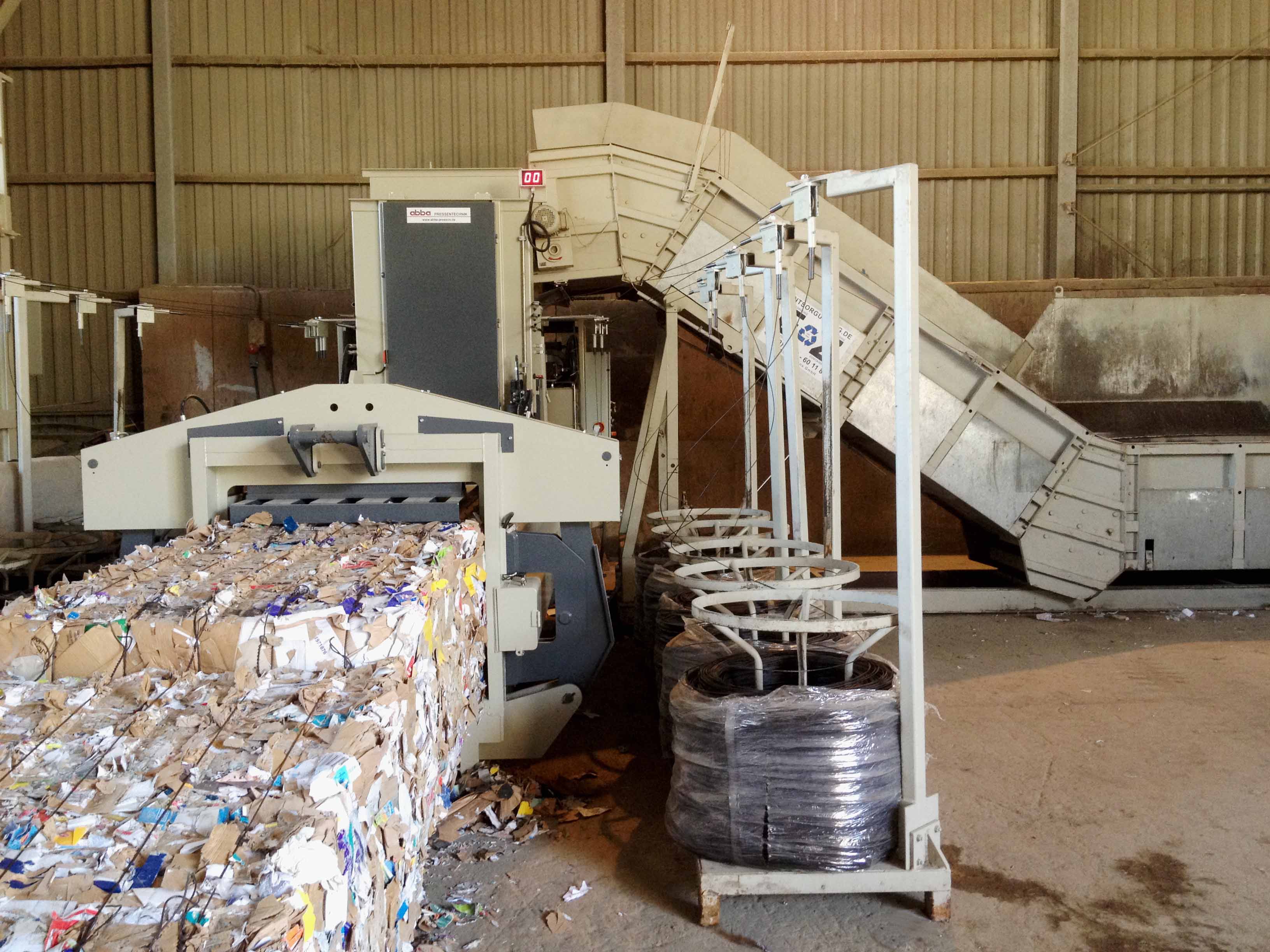

  • Continuous feeding by conveyor belt or similar
  • Fast Cycle times
  • Additional photocell for overfilling
  • Pivoting tying unit for transport and service
  • Hopper as required
  • Simple and safe operation via 5.7" touch panel and push button function
  • 10 programs for different materials (paper, foil, plastic, user recipes etc.)
  • Operator side freely selectable
  • Mobile, hook lift according to DIN

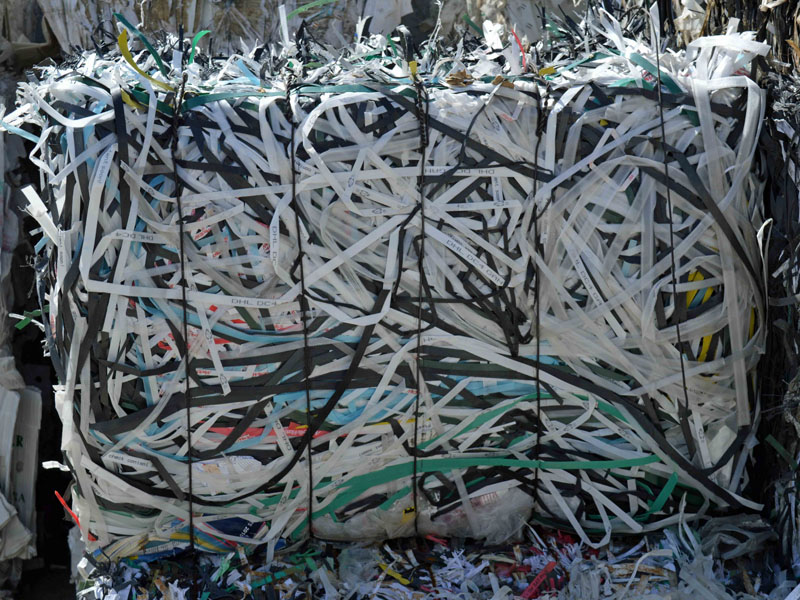

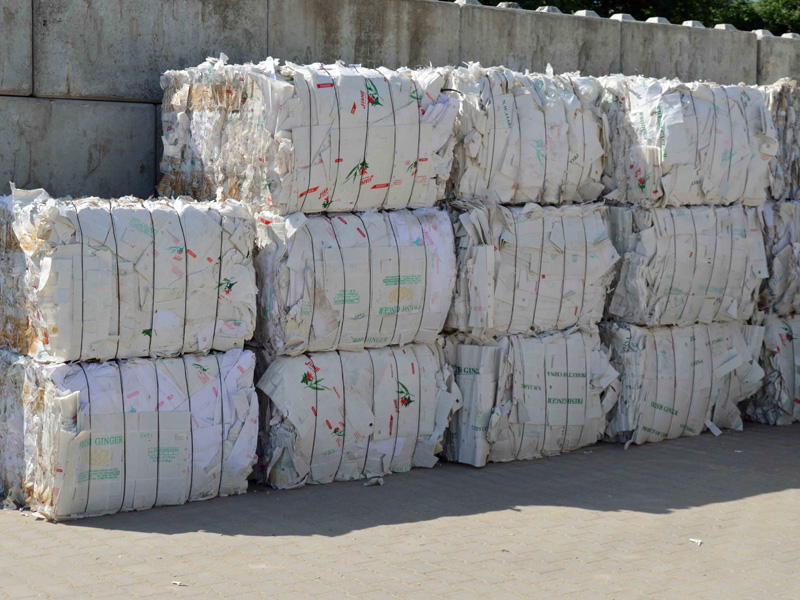

  • 800V5Z1-Ballen4

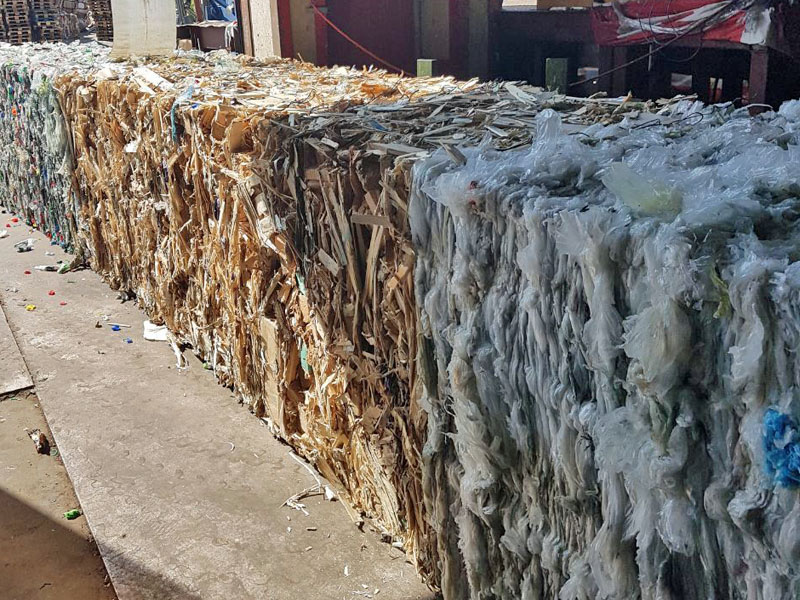

  • 800V5Z1_Ballen 1

  • 800V5Z1_Ballen 3

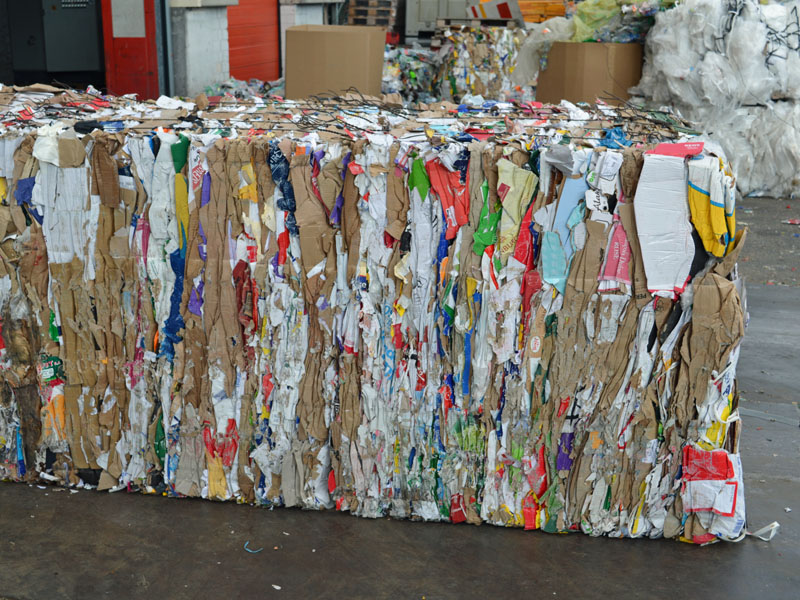

  • 800V5Z1-Ballen 2

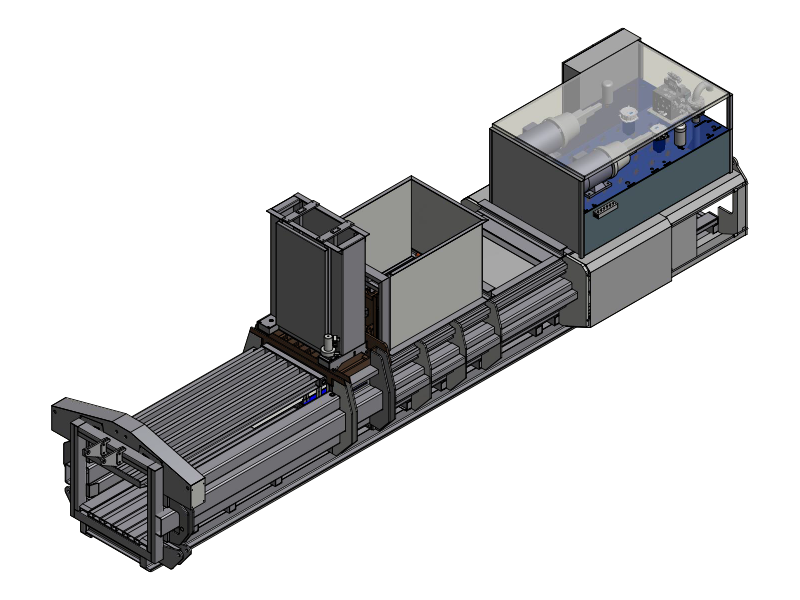

  • Albamat 800 V 5 Z 1 04

Technical data ALBAMAT 800 V5 Z1

TYPE 800 V5 Z1
Pressing force: [kN/t] 800/80
Specific pressing force: [N/cm²] 98
Motor: [kW] 45 60
Throughput weight cardboard 35 kg/m³ (B19): approx. [t/h] 5,0 7,0
Volume-idle running: [m³/h] 261 405
Volume-under working conditions, B19: [m³/h] 219 282
Cycle time: [sec] 20 13
Feed opening: W x L: [mm] 1.140 x 1.700
Weight: approx. [kg] 13.000
Tying system: Vertical, 5-fold, automatic
Bale size W x H x L: [mm] 1.080 x 730 x 1.200
Bale weight  – cardboard B19
(depending on type of material): [kg]		 up to 650 kg

Overview of the technical data of all series

Accessories and Extras

We are happy to advise you

We would be delighted to advise you on a press which you may be considering. On request, you will receive additional product information with all the technical data and a non-binding offer.

Mr. Uwe Albers will be happy to answer any questions you may have.



abba PRESSENTECHNIK

Luddenfehn 15
D-49779 Niederlangen

Phone (+49) 0 59 33 / 92 53 5
Fax (+49) 0 59 33 / 92 53 6
E-Mail: This email address is being protected from spambots. You need JavaScript enabled to view it.

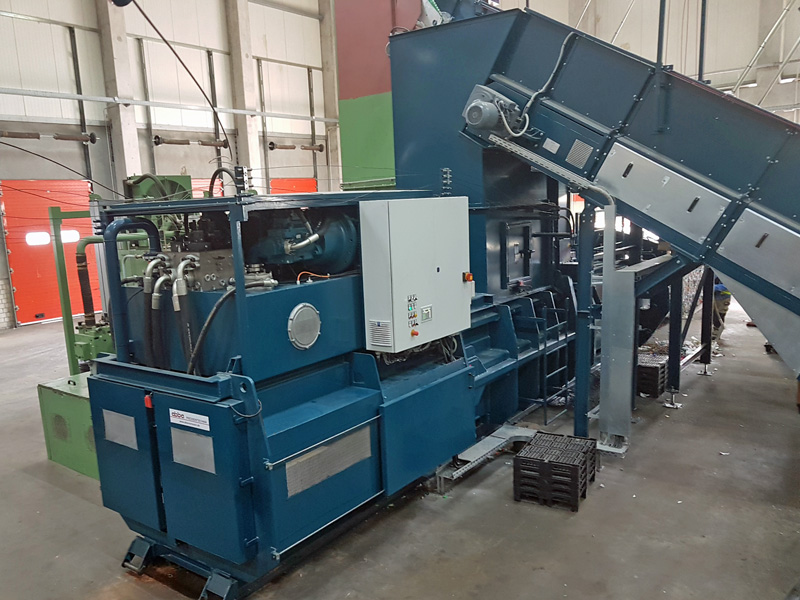

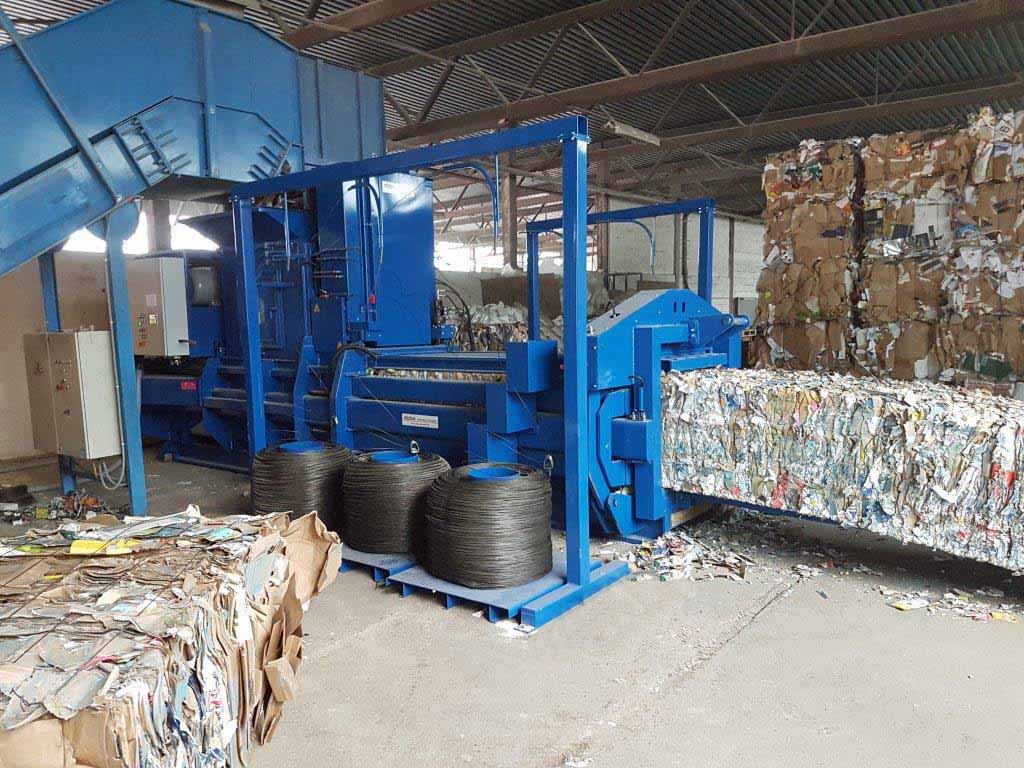

Albamat 800 V5

ALBAMAT 800 V5

Albamat 800 V 5 01

Features ALBAMAT 800 V5

  • 80 t pressing force
  • Suitable for pressing: paper, cardboard, printing waste, foil, hard and soft plastics (PET, HDPE etc), fleece, Aluminium and tinplate cans (Optional)
  • Low energy consumption due to advantageously crossed press cylinder arrangement (2 press cylinders)
  • 5-fold automatic vertical tying
  • Vertical stamp, Tank and control cabinet heating and oil-cooler as standard equipment
  • Ground slide and piston valve for covering the needle opening (prevents contamination of the binding unit with plastic or other small particles, etc.)
  • Channel adjustment - 3 sides, hydraulic-automatic, 4 working cylinder
  • 4 retaining clamps to retain expanding material in the press channel
  • Photocell control in the filling chute
  • Continuous feeding by conveyor belt or similar
  • Fast cycle times
  • Additional photocell for overfilling
  • Mobile, hook lift according to DIN
  • Pivoting tying unit for transport and service
  • Simple and safe operation via 5.7" touch panel and push button function
  • 10 programs for different materials (paper, foil, plastic, user recipes etc.)
  • Operator side freely selectable
  • From motor drive 60 KW machine equipped with Hardox guide (Press piston) incl. wear- and heat-resistant piston guide strips
  • Hopper as required
  • Optional: Hardox floor and channel

  • 800 V 5 Hook Lift Vehicle Test

  • Albamat 800V5 Förderband

  • Albamat 800V5 Foerderband 2

  • Albamat 800 V 5 07

  • Albamat 800V5_Ballen 1

  • Albamat 800V5_Ballen2

  • Albamat 800V5 Dosen

  • Albamat 800V5 Restmuell 01

Technical data  ALBAMAT 800 V5

TYPE 800 V5
Pressing force: [kN/t] 800/80
Specific pressing force: [N/cm²] 98
Motor: [kW] 30 45 60
Throughput weight cardboard 35 kg/m³ (B19): approx. [t/h] 4,0 5,0 7,0
Volume-idle running: [m³/h] 170 225 314
Volume-under working conditions B19: [m³/h] 102 146 188
Cycle time: [sec] 23 18 13
Feed opening: WxL: [mm] 1.140 x 1.470
Weight approx. [kg] 12.000
Tying system: Vertical, 5-fold, automatic
Bale size W x H x L: [mm] 1.080 x 750 x 1.200
Bale weight – cardboard B19
(jdepending on type of material): [kg]		 approx. 450-650

Overview of the technical data of all series

Accessories and Extras

We are happy to advise you

We would be delighted to advise you on a press which you may be considering. On request, you will receive additional product information with all the technical data and a non-binding offer.

Mr. Uwe Albers will be happy to answer any questions you may have.



abba PRESSENTECHNIK

Luddenfehn 15
D-49779 Niederlangen

Phone (+49) 0 59 33 / 92 53 5
Fax (+49) 0 59 33 / 92 53 6
E-Mail: This email address is being protected from spambots. You need JavaScript enabled to view it.

More Articles ...
